Terma Ribbon V Vertical Designer Radiator 1720 x 290mm Bright Copper

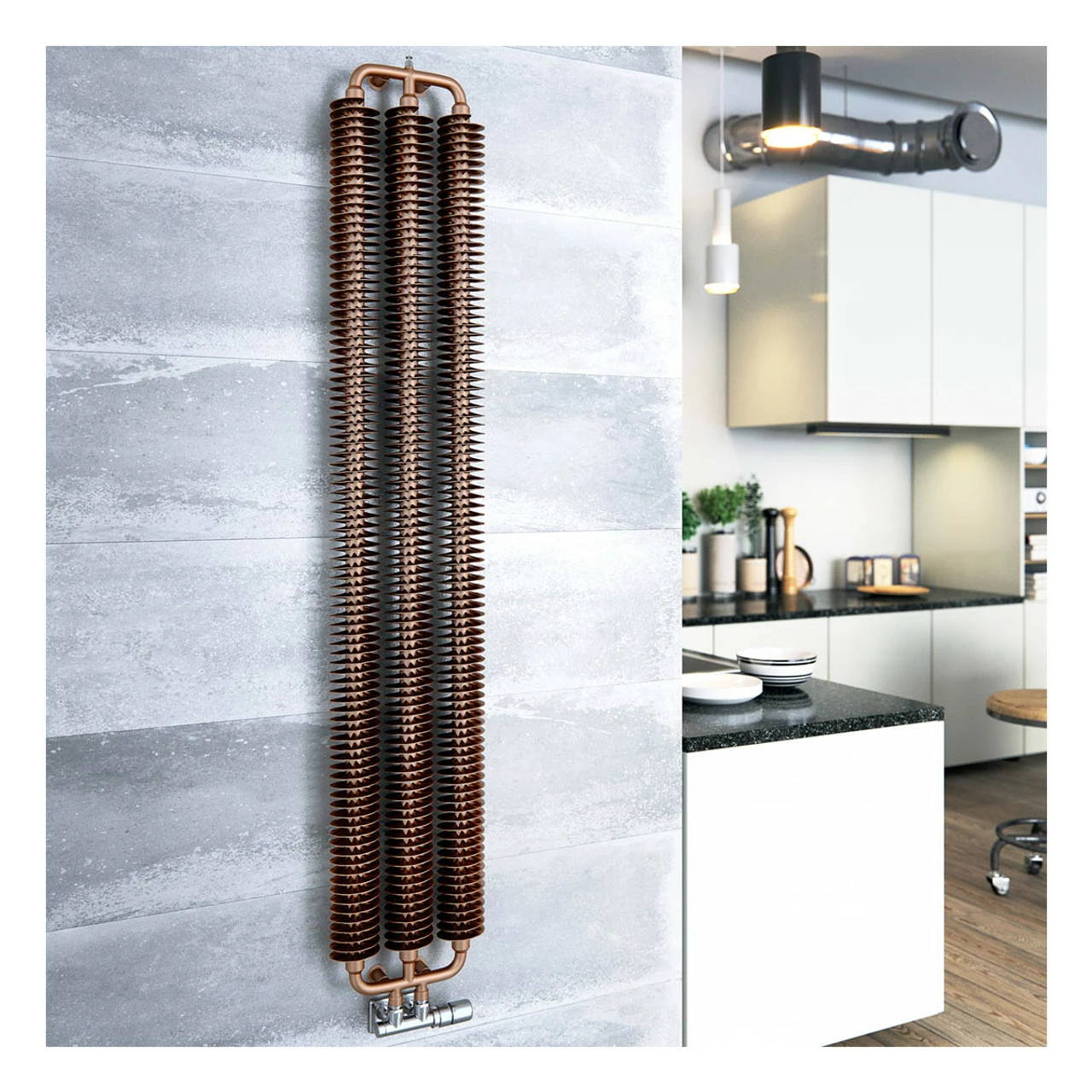

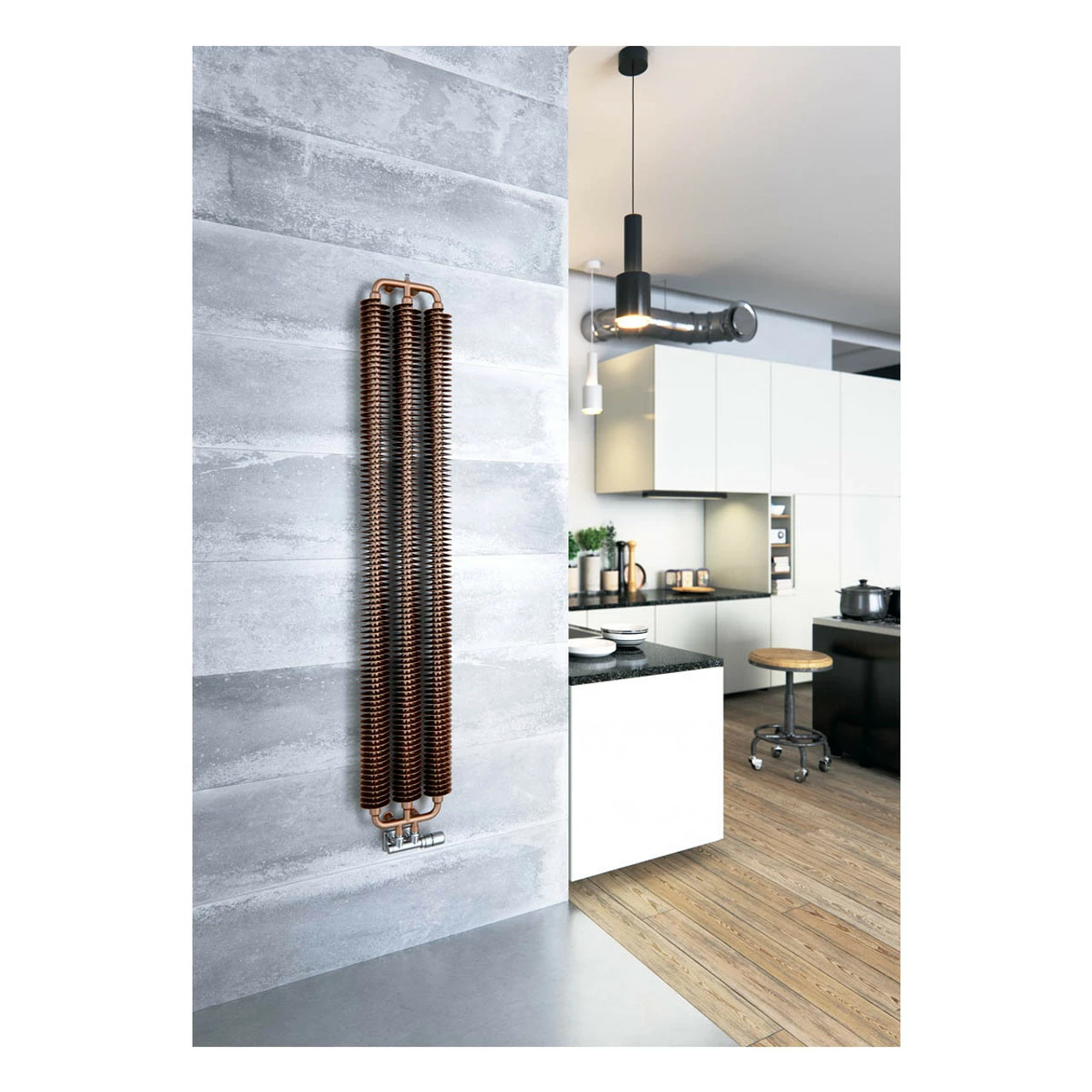

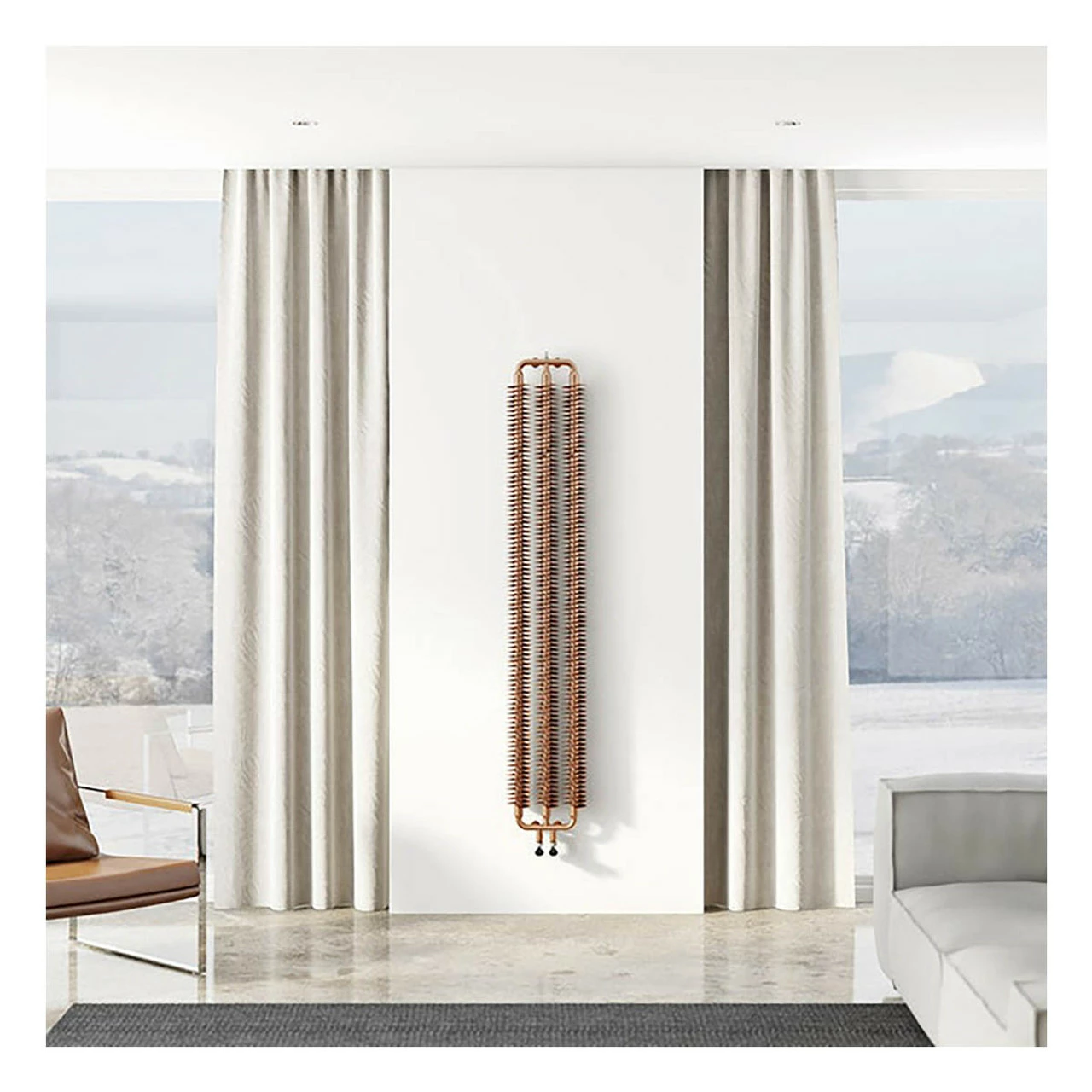

Smooth, matt, copper, designer radiator – Ribbon is a statement radiator from Terma with coiled plate around central steel columns, this vertical version is an upright radiator with a difference.

WGVRV172029-KBCOZX Features:

• Terma aims to think differently when conceiving its radiator designs and the Ribbon is a statement piece with its coiled plates around central steel columns.
• Ribbon does not emulate any other standard radiator and takes its influence from mainland European commercial radiator designs from the yester years.
• Ribbon features unique collectors bars which join the main bars in a rounded profile to form the battery like appearance of its design.
• The Bright Copper colour from Terma has a metallic, smooth texture. Terma offers a 150x50mm colour chip of this finish should you wish to see the colour prior to purchase.
• Ribbon features 50mm pipe connections so we suggest matching this with a 50mm H block valve which will provide a neat finish.
• Ribbon is supplied with a complimentary large cleaning brush to easily clean between the plates.

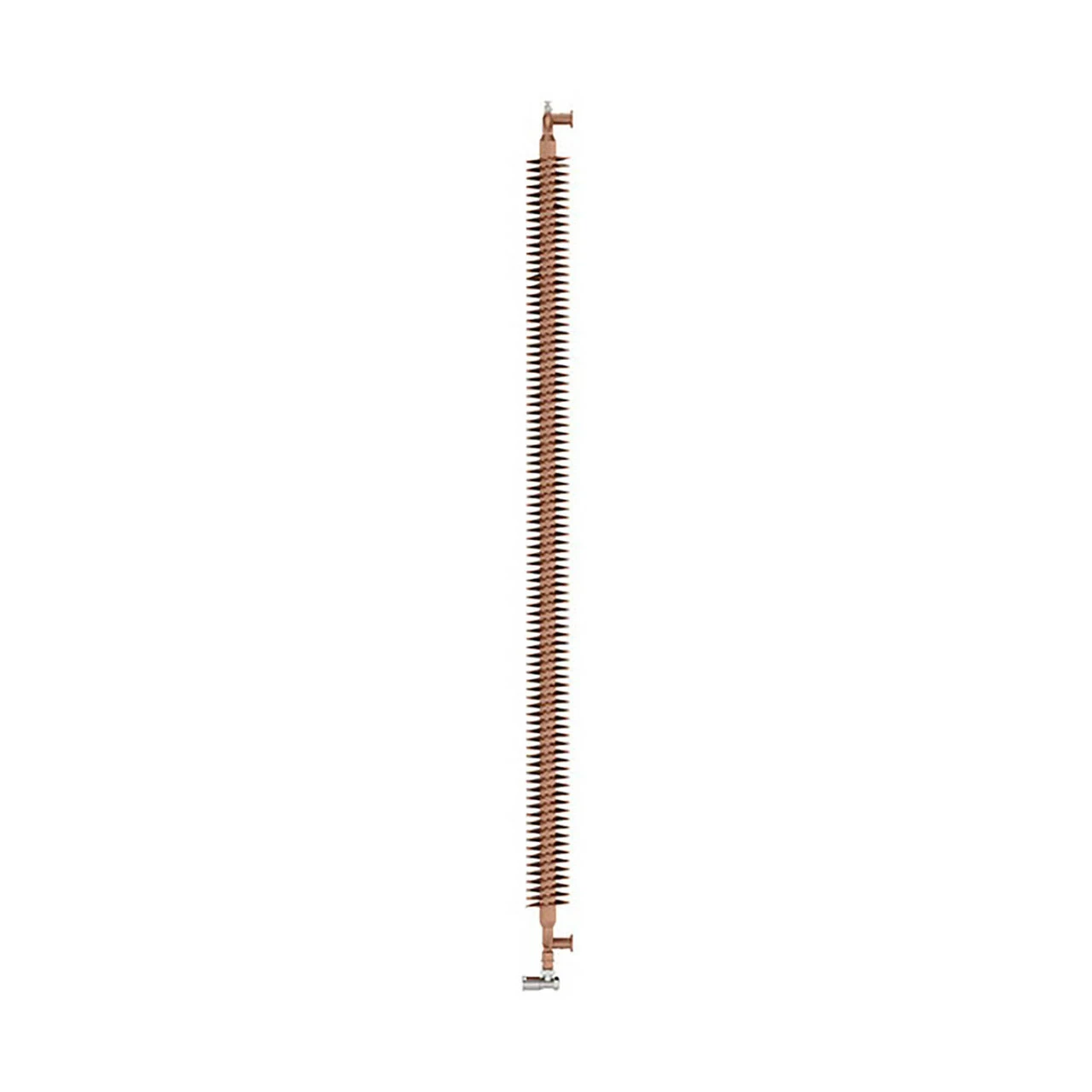

• Note: This model of Ribbon V is a portrait (vertical) model and cannot be installed horizontally, as it will not function correctly horizontally

WGVRV172029-KBCOZX Specification:

• Type of Paint: Powder
• Base Material: Low Carbon Mild Steel
• Width: 290
• Height: 1720
• Depth: 98 to 108
• Output Watts (Delta t50): 660w
• Output BTUs (Delta t50): 2250.6
• Output BTUs (Delta t60): 2844.7584
• No. of Bars: 3
• Layers of Columns/Panels: Single Panel
• Pipe Centres: 50
• Valves Included: No
• Wall to Centre of Inlet (inc for Elec due to masking): 19 to 29
• Floor to Centre of Inlet: n/a
• Weight: 26
• Inlet Location (terma config): YP
• Tapping Size: 1/2″
• IP Rating: n/a
• Voltage: n/a
• Class: n/a
• Cable Length (m): n/a
• Test Pressure (bars): 1,3MPa
• Max Working Pressure (bars): 1MPa
• Max Working Temp (degrees): 96
• Water Content (ltrs): 3.14
• Length of Guarentee: 8 years

What is included:

1 x Terma Ribbon V Vertical Designer Radiator 1720 x 290mm Bright Copper
